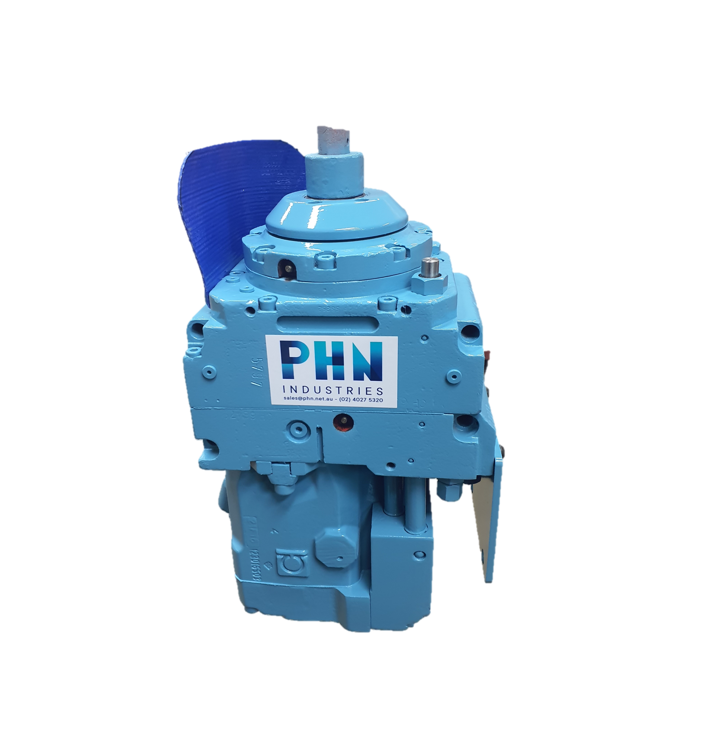

JOY TSRU DRILL HEADS
TSRU PARTS
PHN Industries service and repair Joy TSRU drill heads. Our engineering team will suggest any upgrades that we are currently working on as added service to what we are offering. PHN manufacture complete assemblies and hold all TSRU drill head parts.
Please see parts list is below and enquire now with our team on price and avail.
JOY TSRU Parts List:
| Part Number | Description | Quantity |
|---|---|---|
| PHN-JR000164 | GEAR, SPUR, TEETH 16# TPA 20DEG | 1 |
| PHN-JR000165 | GEAR, CLUSTER, SM-TTH 13#, LG-TTH 18# | 1 |
| PHN-JR000025 | PLATE, RETAINING | 1 |
| PHN-JR000093 | COVER, SHAFT END | 1 |
| PHN-JR000091 | PLATE, DEFLECTOR | 1 |
| PHN-JR000151 | PLATE, RETAINING | 1 |
| PHN-JR000201-01 | GUARD, SPLASH | 1 |
| PHN-JR000158 | PLATE, RETAINING | 1 |
| PHN-JR000167 | TUBE, CONNECTING | 3 |
| PHN-JR000039 | SPACER, MOTOR BOLTS | 2 |
| PHN-HV-C-00060 | CARTRIDGE, SEQUENCE | 1 |
| PHN-JR000166 | MANIFOLD BLOCK ASSY | 1 |
| PHN-HV-A-00024 | VALVE ASSY, HYD MOTOR CASE RELIEF | 1 |
| PHN-PACHYD024 | BOLT FITTING AND SEAL KIT | 1 |
| PHN-HM-2-00002 | MOTOR, HYDRAULIC | 1 |
| PHN-JR000217 | SPINDLE (8MM BOLT) | 1 |
| PHN-JR000123 | JOY LIMIT SWITCH CAP BODY | 1 |
| PHN-JR000090 | SEAL HOUSING | 1 |
| PHN-JR000218 | CHUCK (8MM BOLT) | 1 |
| PHN-JR000127 | LIMIT SWITCH | 1 |
| PHN-JR000155 | NIPPLE; PILOT SIGNAL ASSEMBLY | 1 |
| PHN-JR000157 | BOTTOM MANIFOLD ASSEMBLY | 1 |
| PHN-JR000159 | BRONZE BEARING; THRUST | 1 |
| PHN-JR000160 | UPPER MANIFOLD ASSEMBLY | 1 |
| PHN-JR000162 | BEARING MOUNTING PLATE | 1 |
| PHN-JR000163 | SPACER WASHER, SUITS 55mm THREAD | 1 |
| PHN-JR000200 | KEYSTEEL, 10mm SQ X 25mm LG | 2 |
| PHN-HV-A-00024 | RELIEF VALVE, ASSEMBLY | 2 |
| PHN-JR000206 | 8MM TOP CAP TSRU | 1 |
| PHN-BENHEADLIFTER | DRILLHEAD LIFTER | 1 |
