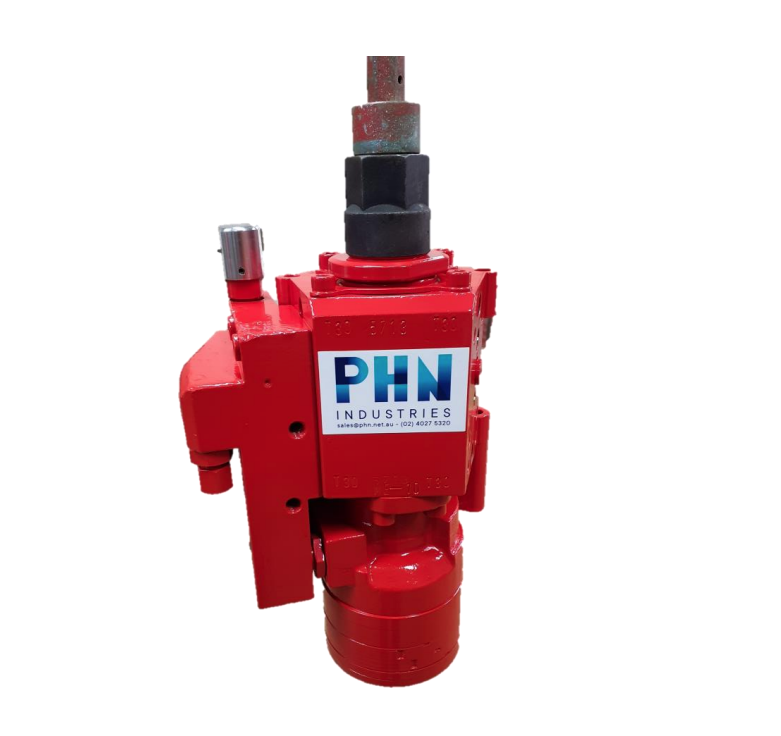

SANDVIK V2I DRILL HEADS
V2I PARTS
PHN Industries service and repair Sandvik v2I drill heads. Our engineering team will suggest any upgrades that we are currently working on as added service to what we are offering. PHN manufacture complete assemblies and hold all V2I drill head parts.
Please see parts list is below and enquire now with our team on price and avail.
SANDVIK V2I Parts List:
| Part Number | Description | Quantity |
|---|---|---|
| PHN-HV-G00001 | GREASE PRESSURE RELIEF | 2 |
| PHN-PD405600 | SPLASHGAURD ASSEMBLY | 1 |
| PHN-TF0100MS030AAAB | PARKER HYD MOTOR | 1 |
| PHN-PD133010 | BODY VINDO MKII - RETRO FIT | 1 |
| PHN-DRP00663 | HILTI CHUCK | 1 |
| PHN-DRP00112 | SQUARE LOCKING CHUCK 50MM A/F | 1 |
| PHN-PD905007 | SEAL KIT (EST) INC PD124080 | 1 |
| PHN-1059090LH195 | GUARD LHS 195 | 1 |
| PHN-PD192110 | HILTI ADAPTOR | 1 |
| PHN-PD124020 | SHAFT VINDO MK2 DRILL HEAD | 1 |
| PHN-HA-G-00003 | LIMIT SWITCH | 1 |
| PHN-DRP00113 | HEX SLINGER | 1 |
| PHN-PD305202 | TAB LOCK NUT | 1 |
| PHN-GN 18BP STR | GREASE NIPPLE 1/8 BSPT | 2 |
| PHN-PD124030 | SPACER BEARING | 1 |
| PHN-PD158080 | MANIFOLD INTEGRAL STYLE L/HAND | 1 |
| PHN-PD158060 | COVER SEAL | 1 |
| PHN-V2IBOLTKIT | BOLT KIT (EST) | 1 |
| PHN-PD132060 | NIPPLE | 2 |
| PHN-PD305261 | TAB WASHER | 1 |
| PHN-PD159070 | RHS MANIFOLD | 1 |
| PHN-1059090RH195 | RHS HOSE GUARD | 1 |
